Enerpac – Equalizer
Enerpac flange spreader - Secure Grip
Secure Grip flange spreader is a product suitable for applications where there is no access gap between the flanges and you are concerned about damaging the flange surfaces.
- The Secure Grip series is used for small, medium or large flange connections
- Access clearance of minimum 0.16 inch (4 mm) is required
- Spreading force of 54 tonnes (480 kN) when used in pairs
- ATEX certified
- No pinch point
All our products are available for both sale and rental.
-
Mechanical secure-grip flange spreader – SG4TMSTD
The SG4TM secure grip bolt-hole spreader can be used on all flange types with bolt-hole sizes ranging from 0.69" (17.5mm) to 0.91" (23.5mm). This low-end, mechanical flange spreader model offers up to 4.2 imperial tons (37kN) of spreading force.Info -
Hydraulic secure-grip in-line flange spreader – SG25TE
The SG25TE In-Line secure grip bolt-hole hydraulic flange spreader can be used on all flange types with bolt-hole sizes ranging from 2.95" (75 mm) to 4.25" (108 mm). This high-end, hydraulic model offers up to 28.1 imperial tons (250 kN) of spreading force.Info -
Mechanical secure-grip flange spreader – SG6TMSTD
The SG6TM secure grip bolt-hole spreader can be used on all flange types with bolt-hole sizes ranging from 0.94" (24mm) to 1.18" (30mm). This low-to mid-end, mechanical flange spreader model offers up to 6.7 imperial tons (60 kN) of spreading force.Info -
Enerpac in-line hydraulic secure grip flange spreader – SG18TE
The SG18TE In-line secure grip bolt-hole hyraulic flange spreader can be used on all flange types with bolt-hole sizes ranging from 2.34" (59.5 mm) to 2.95" (75 mm). This high-end, hydraulic model offers up to 20.2 imperial tons (180 kN) of spreading force.Info -
Mechanical Secure grip flange spreader – SG11TMSTD
The SG11TM secure grip bolt-hole spreader can be used on all flange types with bolt-hole sizes ranging from 1.18" (30mm) to 1.54" (39mm). This mid-end, mechanical flange spreader model offers up to 12.3 imperial tons (110 kN) of spreading force.Info -
Hydraulic Secure grip flange spreader – SG13TE
The SG13TE secure grip bolt-hole spreader can be used on all flange types with bolt-hole sizes ranging from 1.49" (38 mm) to 1.92" (49 mm). This mid-end, hydraulic flange spreader model offers up to 14.6 imperial tons (130 kN) of spreading force.Info -
Hydraulic Secure grip flange spreader – SG15TE
The SG15TE secure grip bolt-hole hydraulic flange spreader can be used on all flange types with bolt-hole sizes ranging from 1.87" (47.5 mm) to 2.44" (62 mm). Spreading force of 33.8 imperial tons (300 kN) if used in pairs as recommended.
Info -

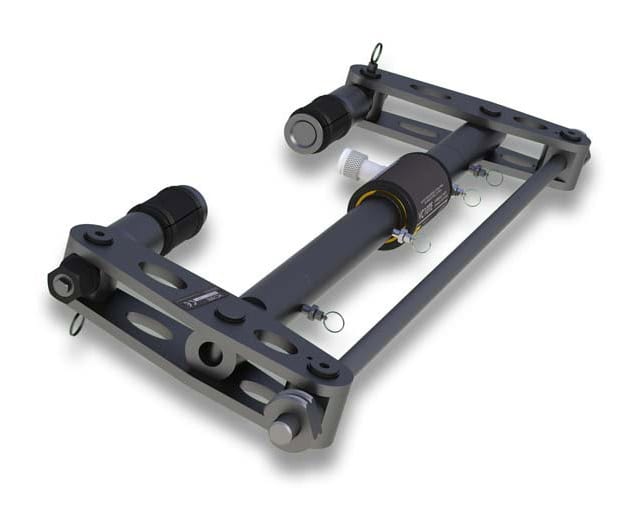

Enerpac Flange spreader – VC10/18TEMAX Secure Grip
The Equalizer™ VC Range of Valve Change-Out tools has been developed to assist in the removal of valves, spades/spacers or gaskets from large flange joints. The span of the tool is longer than a standard Secure-Grip Flange Spreader and is adjustable to enable the tool to operate in a range of situations.Info -
Enerpac VC flange spreader- VC10/13TEMAX
The Equalizer™ VC Range of Valve Change-Out tools has been developed to assist in the removal of valves, spades/spacers or gaskets from large flange joints. The span of the tool is longer than a standard Secure-Grip Flange Spreader and is adjustable to enable the tool to operate in a range of situations.Info -
Enerpac Secure grip flange spreader – VC10/15TEMAX
The Equalizer™ VC Range of Valve Change-Out tools has been developed to assist in the removal of valves, spades/spacers or gaskets from large flange joints. The span of the tool is longer than a standard Secure-Grip Flange Spreader and is adjustable to enable the tool to operate in a range of situations.Info -
Enerpac Secure grip flange spreader – VC10/25TEMAX
The Equalizer™ VC Range of Valve Change-Out tools has been developed to assist in the removal of valves, spades/spacers or gaskets from large flange joints. The span of the tool is longer than a standard Secure-Grip Flange Spreader and is adjustable to enable the tool to operate in a range of situations.Info
