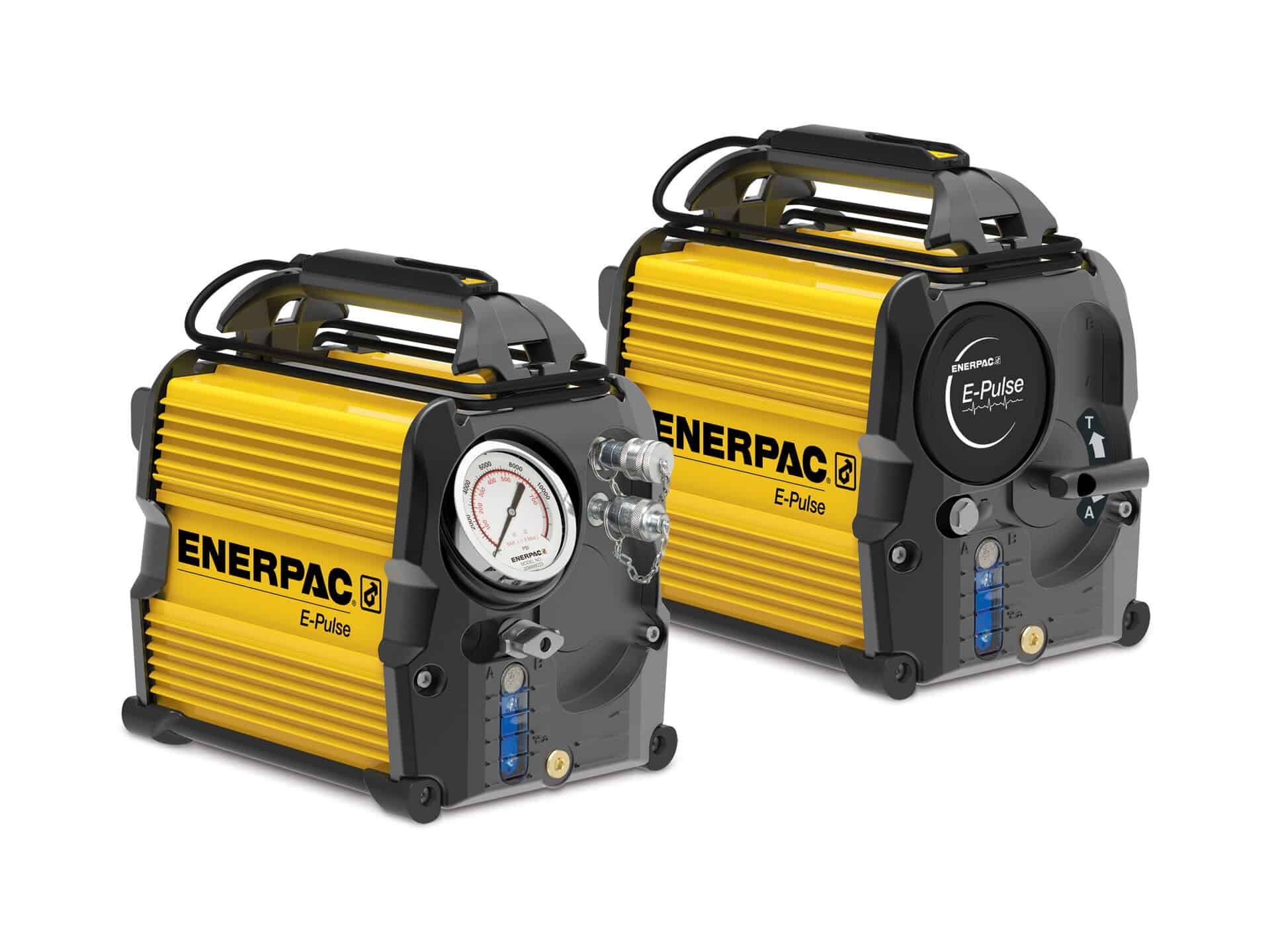

E-series E-pulse™ electric wrench pump

Back

E-Series E-Pulse™ is an electric two-stage pump with high by-pass pressure: 3,6 l/min at 200 bar, 0,52 l/min at 700 bar. The smart controls enables the motor to maintain constant power across the pressure range. The 24VDC power regulator minimizes effects of poor power supply and the six-piston block design provides even flow for smooth operation of cylinder or tool

Back

Speed

3,61

Reservoir capacity

3,61 l/min

Type

Electric

Features and benefits

  • Two-stage pump with high by-pass pressure:  3,6 l/min at 200 bar, 0,52 l/min at 700 bar
  • Smart controls enable motor to maintain constant power across the pressure range
  • 24VDC power regulator minimizes effects of poor power supply
  • Six-piston block design provides even flow for smooth operation of cylinder or tool
  • Durable aluminium housing • Integrated heat exchanger minimizes heat build up
  • High-efficiency permanent magnet, direct drive motor enables continuous use and long service life
  • Built-in thermal protection  • IP Rating: IP54 on the pump, IP67 on the pendant
  • Integrated calibrated pressure gauge
  • Interactive pendant with smart controls
  • Pendant and cord management system
  • Intelligent Auto-Cycle enables press and release actuation to cycle torque wrench until final torque is achieved
  • User can set pressure and operate in manual or auto-cycle mode
  • Convenient oil fill port, oil level indicator and automatic breather
Datasheet
User manual

Speed

3,61

Reservoir capacity

3,61 l/min

Type

Electric

Features and benefits

  • Two-stage pump with high by-pass pressure:  3,6 l/min at 200 bar, 0,52 l/min at 700 bar
  • Smart controls enable motor to maintain constant power across the pressure range
  • 24VDC power regulator minimizes effects of poor power supply
  • Six-piston block design provides even flow for smooth operation of cylinder or tool
  • Durable aluminium housing • Integrated heat exchanger minimizes heat build up
  • High-efficiency permanent magnet, direct drive motor enables continuous use and long service life
  • Built-in thermal protection  • IP Rating: IP54 on the pump, IP67 on the pendant
  • Integrated calibrated pressure gauge
  • Interactive pendant with smart controls
  • Pendant and cord management system
  • Intelligent Auto-Cycle enables press and release actuation to cycle torque wrench until final torque is achieved
  • User can set pressure and operate in manual or auto-cycle mode
  • Convenient oil fill port, oil level indicator and automatic breather
Datasheet
User manual
